Steel for Retrofit Extension Projects: What Builders Need to Know (UK 2026)

Getting structural steel right on retrofit extensions separates smooth projects from costly delays. This guide covers everything builders need to know about specifying, sourcing, and installing steel for domestic alterations in the UK.

Key Takeaways

• Over 85% of UK domestic structural alterations now specify steel beams (RSJs, UBs, UCs) to support new openings in existing walls
• A structural engineer must design all retrofit steelwork Building Control expects UKCA-certified steel and calculation packs
• South West Steel Supplies Ltd can cut, drill, and deliver beams and columns across Bristol and the South West with no minimum order
• Early coordination between builder, structural engineer, steel stockist, and Building Control avoids rework and failed inspections
• Thorough site surveys are essential to assess existing structure limitations before design and installation

Why Retrofit Extensions Depend on Steel Beams

Retrofit extensions involve altering loadbearing elements in existing 1930s–1990s housing stock think kitchen knock-throughs, rear extensions, and loft conversions. A steel beam is often the main structural part of a home extension, supporting the load when a wall is opened or removed.

Steel products offer a high strength-to-weight ratio that timber and concrete simply cannot match in tight domestic settings. Common types of steel products include universal beams, U-channels, solid bars, sheet steel, and box sections. Where timber would require depths exceeding 400mm, a compact UB can span 4–6m while preserving headroom.

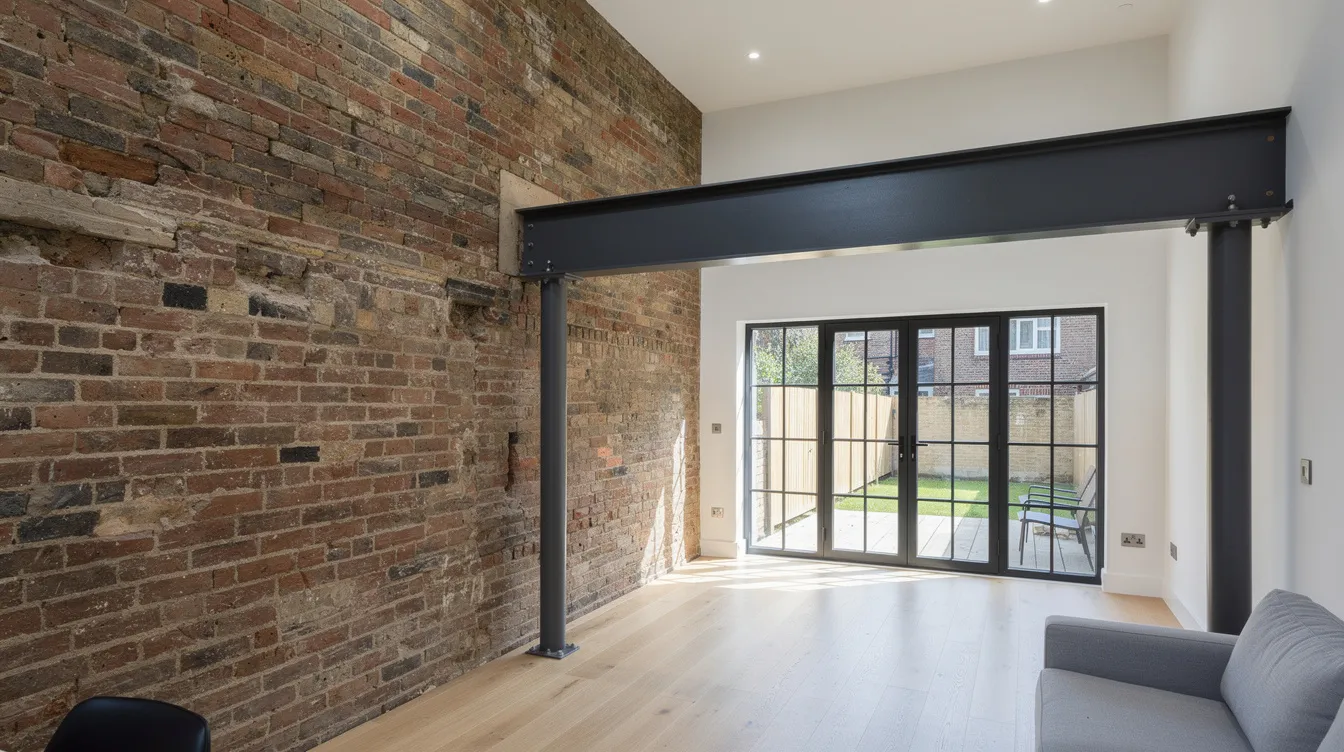

For most openings over 1.0m in existing masonry, Building Control and structural engineers will nearly always specify a steel beam. In a typical Bristol Victorian terrace, a 4.2m rear extension might use a 203x133x25 UB bearing on 150mm padstones, supporting both the first floor and new flat roof.

Key Steel Sections Used in Retrofit Extensions

Understanding the sections on your engineer’s drawings helps builders plan deliveries and site logistics.

Section Type	Typical Use	Common Sizes
Universal Beams (UBs)	Wall removals, floor support	152x89x16, 203x102x23
Universal Columns (UCs)	Posts, goalpost frames	152x152x23
Parallel Flange Channels	Trimmers, masonry support	100x50x10
Hollow Sections (RHS/CHS)	Glazing posts, bi-fold supports	100x100x5mm

Mild steel, stainless steel, and galvanised steel are among the different types of steel available for various applications, ensuring durability and strength. Engineers may specify bolted twin UBs or flitch beams in tight retrofits to reduce depth.

South West Steel Supplies Ltd keeps a wide range of standard UK section sizes in stock, with the ability to source non-stock sections quickly when needed.

Working with Structural Engineers and Building Control

Retrofit work to existing structures absolutely requires engineered steel design. Only a qualified structural engineer should provide calculations for structural steel beams to prevent failures or inspector refusals.

Every structural steel beam requires professional calculations for size, grade, and positioning based on specific loads such as dead, live, and wind. The size of the steel beam required for a home extension is determined by a structural engineer who calculates the necessary dimensions based on the specific loads and structural requirements of the building.

What builders should provide to the engineer:

• Measured survey of existing structure
• Wall types (solid, cavity, thickness)
• Proposed opening dimensions
• Roof and floor construction details

Part A of UK Building Regulations mandates that all steelwork safely transmits loads to the ground. Building Control expects structural calculations, GA drawings, and evidence of UKCA certification for structural steel.

If a beam is supported by a shared wall with a neighbour, a formal Party Wall Agreement may be legally required before work begins. Developers must prioritise structural safety and legal compliance when undertaking retrofit and extension projects involving steel.

Fees for a single beam design typically start around £250–£300+VAT. Never copy beam sizes from other jobs retrofits vary hugely by wall thickness, spans, and historic alterations.

Design and Detailing Issues Builders Must Get Right

This section covers the failure points that most often cause cracking, deflection, or Building Control rejections.

Bearings and Padstones

When installing a steel beam, it is important to ensure that the beam extends beyond the opening by at least 150mm onto the existing wall this is referred to as the bearing. Underpinning or the use of padstones is often required to accommodate the load of new steel beams under existing structures.

Lateral Restraint

Steel beams must be precisely integrated into existing structures to maintain stability and prevent excessive deflection. Restraint straps tying beams to floor joists prevent lateral torsional buckling on long spans.

Joist Connections

Bolted connections are generally preferred over welding in retrofitting due to better performance with existing structures. Use proper joist hangers or cleats matching the engineer’s details.

Cavity Trays

Cavity trays must be installed above large steel beams that support double-skin external walls to prevent water pooling.

Openings in Beams

Site drilling or notching flanges and webs for services must only follow engineer’s details. Uncontrolled holes can reduce shear capacity by 30–50%.

South West Steel Supplies Ltd can supply beams pre-drilled to the engineer’s hole schedules, ensuring precision without compromising the structure.

Fire, Corrosion and Acoustic Protection of Retrofit Steel

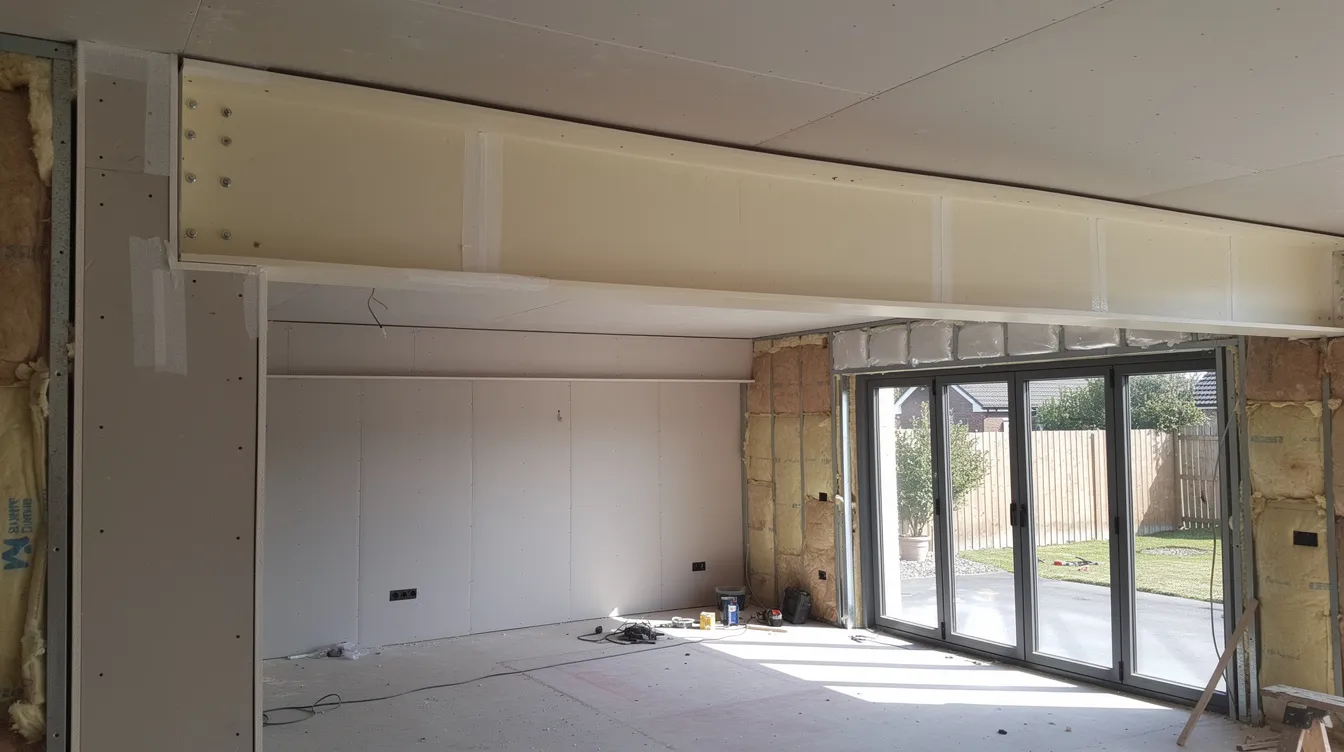

Steel beams must provide at least 30 minutes of fire resistance, which can be achieved through various methods such as using fire rated plasterboard. To comply with building regulations, steel beams should be surrounded by a double layer of plasterboard or wrapped in fire-rated materials.

Fire safety measures for steel beams must be installed correctly to function effectively in the event of a fire, preventing bending and warping of the steel. Maintain continuous fire lines through junctions and around connections.

Corrosion Protection

Corrosion protection is necessary for exposed steel, especially in external areas, to prevent rust at connections. Internal steels in dry, heated homes typically need only standard shop primer, but steels near external openings may benefit from galvanising. Updated NHBC standards for 2026 regarding galvanised steelwork and detailing must be followed in construction projects.

Thermal Considerations

Steel is highly conductive, necessitating insulation or thermal breaks to address thermal bridging and meet energy efficiency standards. Thermal bridging occurs when steel beams penetrate thermal envelopes, leading to potential heat loss and condensation problems. Steel’s high thermal conductivity necessitates strategies to control energy efficiency and moisture in building designs.

Acoustic Performance

Steel above party walls can transmit impact noise consider acoustic hangers or resilient bars between steel and structure.

Practical Site Handling and Installation in Retrofit Projects

Retrofit constraints include occupied homes, tight access, limited headroom, and the need for temporary works.

Access and Delivery

Getting 5–6m beams into Victorian terraces or narrow South West streets requires planning. Where engineers allow, beam splits with cover plates solve access problems. Many steel suppliers in the South West offer delivery across a wide geographical area, including Cornwall, Dorset, Devon, Gloucestershire, Somerset, and Wiltshire.

Temporary Propping

To comply with current regulations, steelwork must involve detailed temporary works, including proper support techniques. Temporary support using Acrow props and strongboys is essential before removing load-bearing walls or inserting new steel beams. Follow the engineer’s temporary works advice precisely.

Tolerances

Leave realistic tolerance on openings to receive beams and padstones. Check level and line carefully before releasing props.

Steel delivery services in the South West UK often include flexible options for both small and large orders, utilising either in-house delivery or courier services depending on quantity. Customers can typically arrange for collection services directly from the supplier’s location.

Selecting the Right Steel Stockist for Retrofit Extensions

The choice of steel stockist matters more on retrofit jobs, where delays or wrong sections can stall works in occupied homes.

Certification and Traceability

Since 2014, all structural steelwork in the UK must comply with BS EN 1090 standards and carry a UKCA mark from the fabricator. Ensure mill test certificates and traceability for Building Control sign-off.

Processing Capabilities

Steel processing services include cutting, drilling, profiling, and shearing, which are essential for customising steel products to meet specific project requirements. Bespoke metal cutting and drilling services ensure customers receive steel components meeting exact specifications. Steel processing can significantly enhance the efficiency of construction projects by providing pre-fabricated components ready to use upon delivery, reducing on-site labour time.

South West Steel Supplies Ltd has no minimum order quantity source a single UB as easily as a full frame package. Contact the team to discuss your requirements or upload drawings for a same-day quote.

Cost Planning and Value Engineering Retrofit Steelwork

Steel is often a relatively small part of total project cost, but poor planning creates outsized delays.

Typical Cost Drivers:

• Section weight (kg/m)
• Total length and complexity of processing
• Coatings and delivery distance

Value Engineering Ideas:

• Early dialogue between builder, engineer, and stockist
• Rationalise section sizes to reduce variety
• Use standard 203/254 UB sizes where possible

Steel products are widely used in various industries including construction, infrastructure, manufacturing, and automotive. Accurate, itemised quotes showing section, length, weight, and processing help builders present clear costs to homeowners and avoid disputes.

FAQ: Steel for Retrofit Extension Projects

Do I always need a structural engineer for retrofit steel in an extension?

Yes. For any loadbearing wall removal or structural alteration in the UK, a qualified structural engineer should design the steel. Building Control and most insurers now expect this as standard practice.

Can South West Steel Supplies Ltd help if my engineer has specified a hard-to-find section?

Absolutely. The team can check live stock, suggest equivalent UK standard sections, and liaise with the engineer to agree any substitutions before fabrication and delivery.

How quickly can I get beams for a small knock-through in Bristol or nearby?

Many common UBs and UCs can be cut and delivered within a few working days across the South West. Same-week options are often available for straightforward orders speak to the sales team for current lead times.

Can you pre-drill beams and supply plates for connection details?

South West Steel Supplies Ltd offers drilling, plate cutting, and profiling to match engineer’s connection drawings, so beams arrive on site ready for installation.

What information should I send to get a fast and accurate steel quote?

Send structural drawings and the steel schedule from your engineer, project address for delivery, desired delivery date, coating requirements, and whether offloading equipment is available on site. Visit our website or contact the team directly to get started.
