Understanding Steel Tolerances in Construction Projects

Steel tolerances sit behind almost every successful build, even though most people never see them. They are the small, agreed limits that decide whether a beam, column or plate is fit to go into a structure.

This guide is written for fabricators, contractors, and the trade and industrial buyers across the South West who rely on steel arriving ready to fit. Get them right, and components fit together on site with little fuss. Get them wrong, and you risk delays, rework, and in the worst cases, a structure that does not perform as designed. This explains what steel tolerances are, why they matter, and how accurate fabrication keeps them under control.

What Are Steel Tolerances?

You may be asking, what exactly are steel tolerances? Steel tolerances refer to the permissible limits of variation in the dimensions of a steel component. No rolling mill or workshop can produce metal to a perfect nominal dimension every time, so standards define an acceptable range above and below the target size, to accommodate the small variations that occur in production.

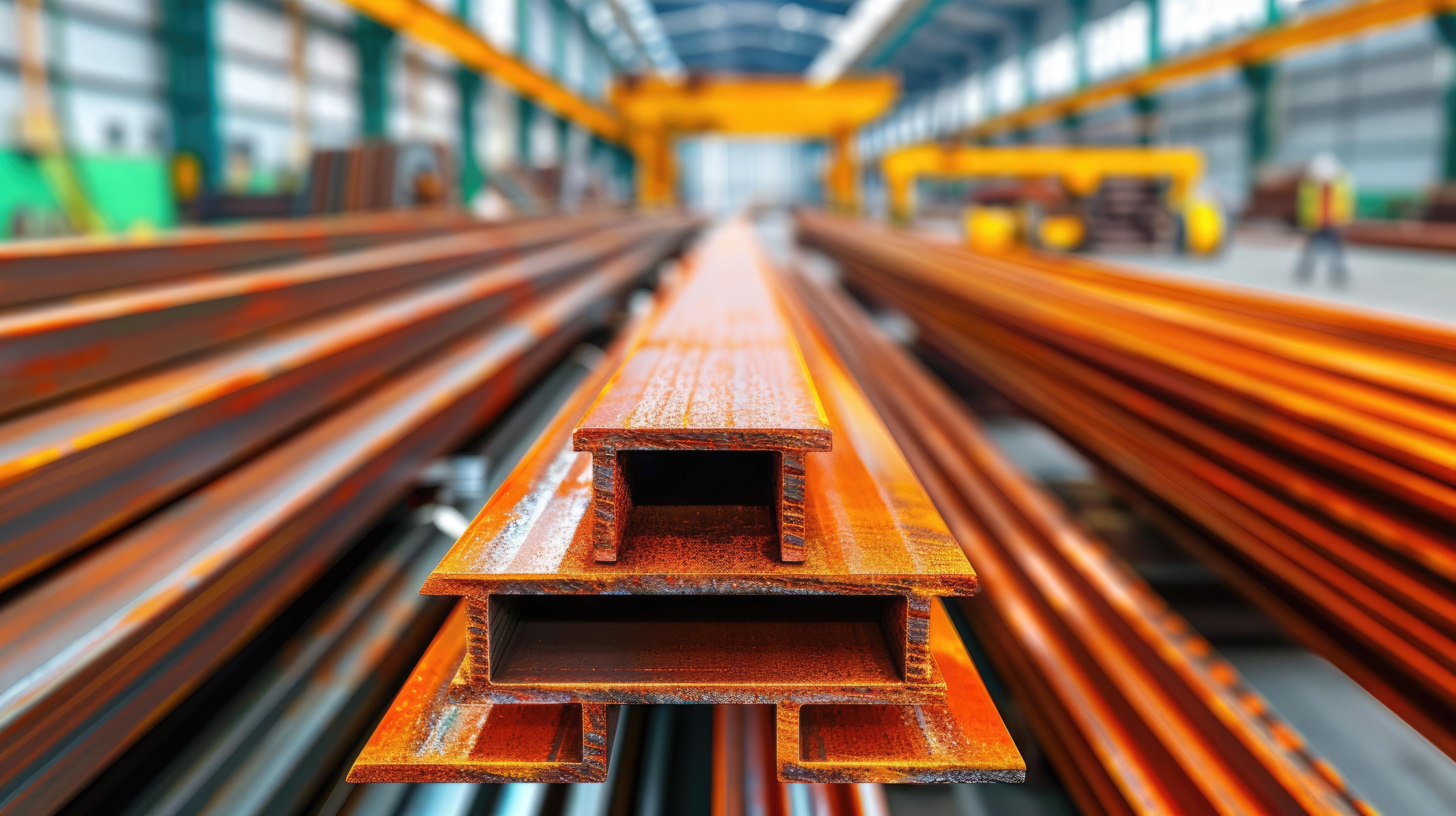

A universal beam, for example, has a stated nominal depth, web thickness and length, each with a defined tolerance. As long as the finished section falls within that range, it is acceptable for use. These dimensional tolerances cover length, width, material thickness, straightness and a true square edge. They exist so that mass-produced steel parts fit together properly during assembly, and so that finished steel structures behave the way the engineer intended.

Without a specified tolerance, this could mean the purchaser wants a metal sheet that is 48.00000000 inches by 96.00000000 inches. Without a specified tolerance, this could mean the purchaser wants a metal sheet that is 48.00000000 inches by 96.00000000 inches. This level of accuracy would generally be unachievable by the metal producer.

Why Steel Tolerances Matter in Construction

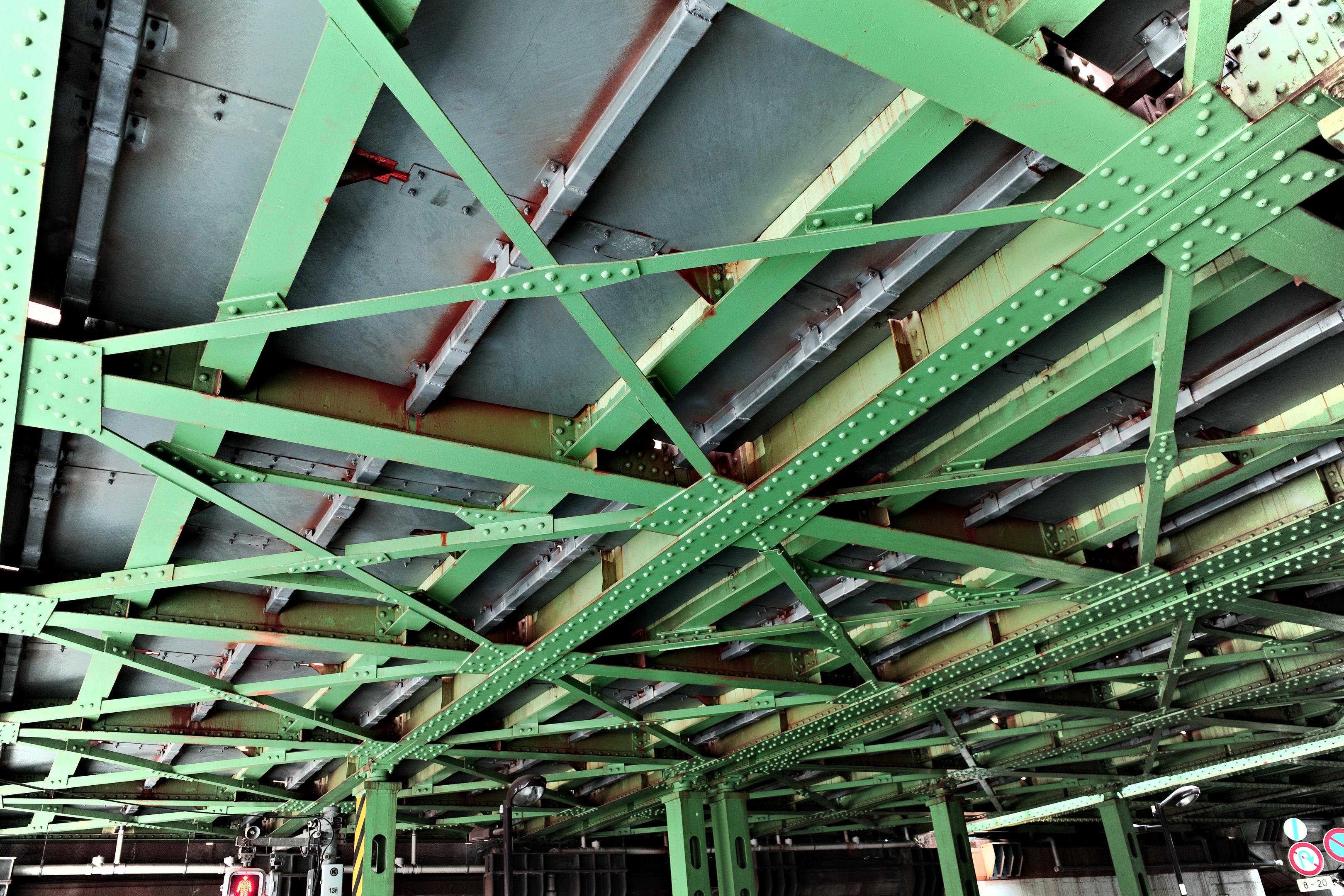

Even minor deviations in steel tolerances can affect load-bearing capacity, which is critical on structural work. If a section is thinner than expected across its web, or its thickness falls short of the drawing, it may carry less than the design assumed. On critical applications such as load-bearing frames, misaligned bolt holes are another common issue. When holes do not line up, fixings can introduce locked-in shear stresses, which reduces the structural capacity and stability of the connection.

Several factors influence whether a component performs as designed, and accurate dimensions are one you can control. Components that arrive within tolerance fit first time, which avoids cutting, packing or re-drilling on site. That keeps structural performance predictable and keeps the build on schedule. For trade and industrial buyers working to tight delivery slots, this consistency saves real time and money.

The Three Categories of Steel Tolerances

Steel tolerances are typically divided into three categories: mill, fabrication and erection. Each applies at a different stage of the journey from raw stock to finished frame.

Category	Stage	What it controls
Mill tolerances	Steel production	Variations created during the rolling of sections, plates and bars
Fabrication tolerances	Workshop	Cutting lengths, drilled hole positions and welding distortion
Erection tolerances	Site assembly	Parameters such as column plumbness and overall frame alignment

Mill tolerances are set when the steel is rolled and are largely outside the fabricator’s control. Fabrication tolerances are where careful steel fabrication makes the difference. Accurate cutting and precise drilling of hole positions keep parts within limits, while erection tolerances are managed by the team assembling the frame on site.

Steel Tolerances and the BS EN 1090-2 Standard

In the UK, geometrical tolerances for steel fabrication are specified in BS EN 1090-2, the execution standard for steel structures. It sets out essential tolerances, the minimum needed for structural safety, and functional tolerances for fit and appearance. Working to this standard gives engineers and contractors confidence in compliance, since components meet a known, repeatable benchmark.

International standards take slightly different approaches. EN standards, used across Europe and the UK, tend to define tighter dimensional limits. ASTM standards, common for global steel sourcing in the United States, allow wider variation for flexibility. For UK construction projects, EN tolerances are generally preferred because they support consistent fabrication outcomes.

Keeping Steel Tolerances in Check Through Accurate Fabrication

Holding tight steel tolerances starts with accurate drawings. When work follows a structural engineer’s specification, the finished part matches the design. Routine measurement and inspection checks during in-house processing then catch any deviation early, so problems are measured and corrected before a part leaves the workshop. Catching deviations early also helps prevent excessive material waste during fabrication, since fewer parts are scrapped or re-cut.

Welding adds its own challenge. Weld shrinkage can pull a component out of line in one direction and cause angular distortion. Where that happens, heat straightening is a useful technique to correct out-of-tolerance distortion and bring the piece back within limits. When fabricating structural sections, good fabrication practices, including methods such as profiling and plasma cutting, support the precision needed for repeatable shapes that hold their dimensions from one part to the next.

At South West Steel Supplies, our cutting, drilling and wider processing services work to the measurements you provide, so structural steel arrives ready to fit. We are UKCA/CE accredited and BS EN 1090 certified, which gives you a documented quality trail for structural and load-bearing work. If you are unsure of exact specifications, our team’s expertise is on hand, and we recommend supplying drawings from a structural engineer so every cut matches your project. Send us your drawings and the team will quote the same day.

Frequently Asked Questions

What standard covers steel tolerances in the UK?

In the UK, steel tolerances for fabrication and erection are set out in BS EN 1090-2, the execution standard for steel structures. It defines both essential tolerances for structural safety and functional tolerances for fit and appearance.

What is the difference between mill and fabrication tolerances?

Mill tolerances cover variations created when steel is rolled at the mill, such as small differences in section depth or thickness. Fabrication tolerances apply later in the workshop and control things like cutting lengths, hole positions and welding distortion.

Can steel be cut to an exact size?

No process produces a perfectly exact dimension every time, but accurate cutting keeps parts within a tight, defined tolerance. Working from a structural engineer’s drawings gives the best results, as the finished part matches the agreed specification.

Why do bolt holes need accurate tolerances?

If bolt holes do not line up, fixings can introduce locked-in shear stresses at the connection. That can reduce structural capacity and make assembly on-site slower and more difficult.

Do tighter steel tolerances cost more?

Tighter tolerances require more time and care to achieve, so they may affect lead time for complex work. Specifying only the tolerance the job needs, rather than the tightest possible, strikes the right balance, keeping cost and programme sensible while protecting structural performance.
